The aroma molecules of cannabis

One molecule with two hands is nature's cleanest smell experiment. Cannabis is hundreds of shapes at once — and what it does runs deeper than what it smells like.

author: Denson Smith · 2026-06-30 · rebuilt 2026-08-30

How this was made. The molecules were resolved through PubChem (identity — CID, formula, weight, and the live 3D structures), the science pulled from OpenAlex, the non-terpene "flavorant" literature (Oswald et al.) verified against CrossRef, and the aroma descriptors / interaction effects from grounded web search. The interactive 3D structures are snapshots of PubChem's records served with this page and rendered by 3Dmol.js, so the whole page works without any third-party request; the snapshots are re-checked against PubChem occasionally.

This page climbs a ladder. It starts with the simplest experiment in smell — one molecule and its mirror image — and ends at cannabis, where hundreds of compounds arrive at once, first at the nose and then everywhere past it. One rule holds on every rung: shape decides what a molecule does, and blends decide what you experience.

The simplest case: one molecule, two hands

Start where smell is simplest. Two molecules can share their formula and their entire bond map and still differ the way your left hand differs from your right: mirror images that no rotation can superimpose (chemists call them enantiomers). Your nose tells them apart, because smell receptors are proteins, and proteins are themselves built one-handed — a mirror-image molecule docks into them differently. The textbook pair is carvone, C₁₀H₁₄O: the S hand is the smell of caraway and dill; its mirror image, the R hand, is spearmint. Below, the pair turns in opposite directions so the two stay perfect mirror images of each other as they move — watch the red oxygen. Drag either one: every bond length and angle matches, and they will never line up.

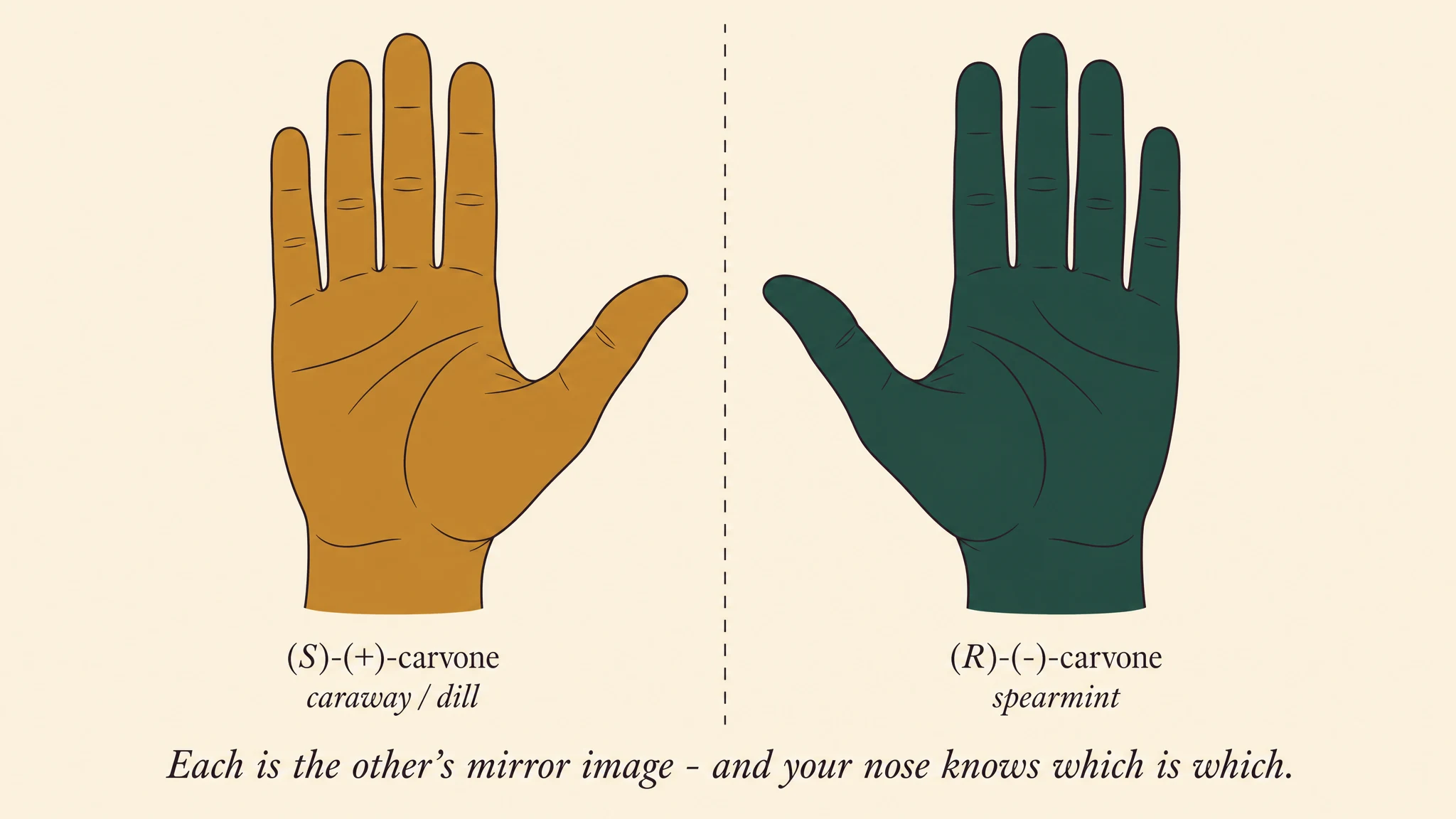

A left hand tinted ochre labeled (S)-(+)-carvone, caraway/dill, and a right hand tinted evergreen labeled (R)-(-)-carvone, spearmint - palms toward the viewer, thumbs meeting at a dashed mirror line, exact mirror images of each other. Annotation: each is the other's mirror image, and your nose knows which is which.

Chirality is handedness: raise your own hands palms-out and you are holding the diagram. R and S are Latin rectus and sinister — right and left — naming each molecule's configuration. The (−) and (+) name something different, the direction each rotates polarized light; for carvone the two conventions happen to point opposite ways.

How the 3D viewers work

Every viewer is a real molecular structure — PubChem's record for that exact compound, served with this page and drawn in your browser by the open-source viewer 3Dmol.js. Nothing is an artist's impression, and nothing leaves the page to render it.

Viewer: 3Dmol.js documentation — Rego & Koes, Bioinformatics 2015, doi:10.1093/bioinformatics/btu829.

Limonene has hands too: the bright orange-peel citrus people mean by "limonene" is the R hand, (+)-limonene — the form the Johns Hopkins anxiety trial dosed — while its mirror, (−)-limonene, reads harsher: lemon-pine edging toward turpentine. (The atlas page's limonene card uses PubChem's hand-unspecified record; the citrus description belongs to the R hand.)

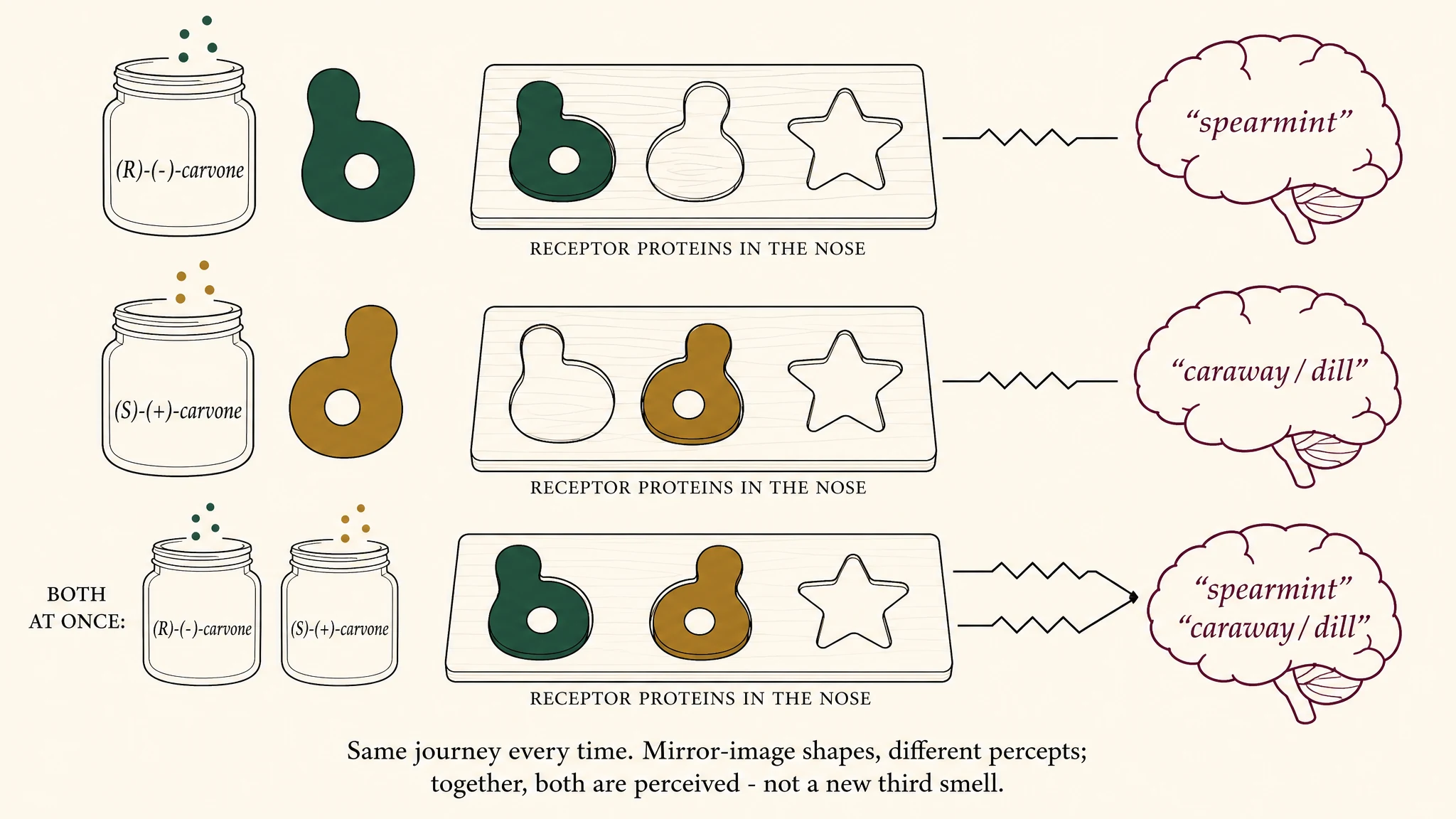

Three-lane diagram. (R)-(-)-carvone, drawn as a green puzzle piece, leaves its jar and snaps into the matching pocket on a receptor board; a signal reaches the brain, which reads spearmint. (S)-(+)-carvone, the same piece mirror-flipped in ochre, fits only its own mirrored pocket, and the brain reads caraway/dill. Smelled together, each piece fits its own pocket and the brain reads both words at once - spearmint plus caraway/dill - not a new third smell.

Illustration, not data: carvone's two hands drawn as mirror-image puzzle pieces. Each fits only its own receptor pocket — the (R)-(−) hand reads as spearmint, the (S)-(+) hand as caraway/dill — and smelled together, both qualities are perceived at once, not a new third smell (Pike, Enns & Hornung 1988).

Hold onto how clean that is: one molecule, one swap of hands, two unmistakable smells — nature running the controlled experiment for you. It is the last simple thing on this page. Don't worry — your AI can explain anything past it: the box at the top hands this whole site to your assistant, in a form built for exactly that.

Cannabis never sends you one molecule

Now open a jar of cannabis, and the clean experiment is over. Nothing about this plant arrives one molecule at a time — its smell is hundreds of volatiles at once, and even its same-formula games are plural. Six of its headline terpenes are the same molecule by formula — C₁₀H₁₆, 136.23 g/mol, the identical twenty-six atoms — yet they smell nothing alike. The aroma lives in the shape, not the formula (rotate them on the atlas page and you'll see how differently those same atoms are arranged).

MyrceneC₁₀H₁₆ · earthy LimoneneC₁₀H₁₆ · citrus α-PineneC₁₀H₁₆ · pine β-PineneC₁₀H₁₆ · pine TerpinoleneC₁₀H₁₆ · complex OcimeneC₁₀H₁₆ · sweet-herbal

The two heavier ones are likewise twins: β-caryophyllene (peppery) and humulene (hoppy) are both C₁₅H₂₄ — humulene is α-caryophyllene, a structural isomer. One of them — β-caryophyllene — is also a drug: not a cannabinoid, but a terpene found across other plants that happens to bind a cannabinoid receptor — a thread the atlas page follows to the clinic — and from there into the cannabis-and-dementia literature, which gets its own page.

Beyond terpenes — the flavorants that modify the base

Here's the twist the last few years of analytical work delivered (Oswald & Abstrax, ACS Omega 2021–2024): terpene profiles are remarkably similar across cultivars that smell nothing alike — so terpenes are the loud, pleasant base canvas, but they are not what makes one strain smell like gas and another like passionfruit. That comes from trace non-terpene "flavorants" — under 0.05% of the flower's mass, but with odor thresholds so low they punch far above their weight. And, exactly as you'd expect, they don't replace the terpenes — they modify them. Each flavorant class has a rotatable card in the atlas.

How they make it better — or worse

The flavorants don't add a separate note; they rewrite the whole percept. Real examples:

limonene (flat lemon-cleaner)+tropical thiol→juicy grapefruit▲ better
myrcene + caryophyllene (harsh herbal)+esters→candy / pastry▲ better (masked)
terpene base+skunk thiol→dank gassy diesel◆ louder — taste-dependent
savory base+trace skatole→umami funk▲butexcess→fecal off-note▼ worse

The mechanism is olfactory, not just chemical: the nose reads a mixture as one blended "odor object" (configural perception), and a potent trace molecule changes that blend two ways — by masking (it occupies an olfactory receptor without firing it, blocking a dominant terpene so harsh pine/herb recedes and finer notes surface) and by synergy (terpene + thiol don't smell like "pine + sulfur" — they fuse into a brand-new quality). The trace compound rewrites how the brain reads the entire terpene mixture.

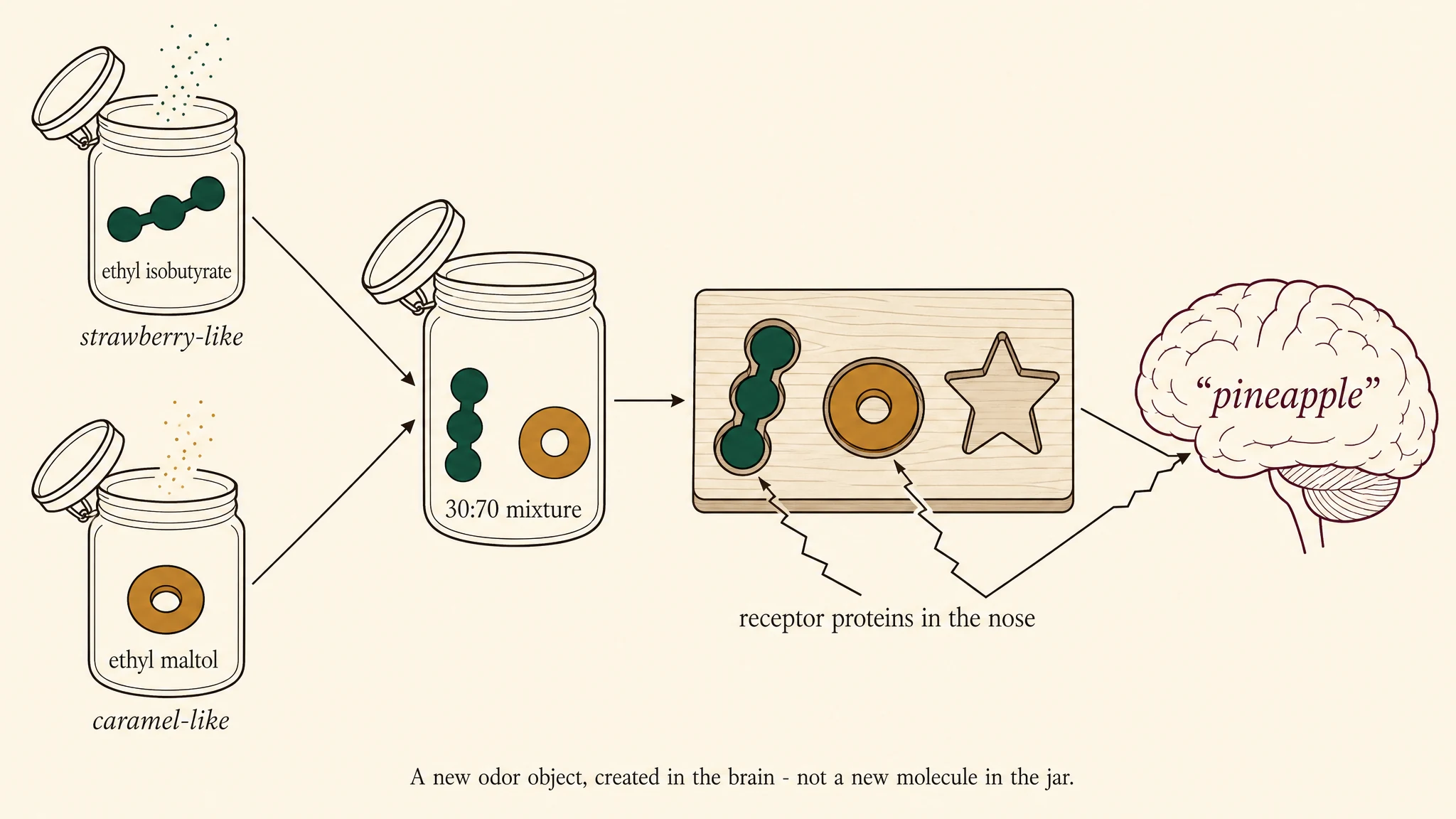

Jars of ethyl isobutyrate (strawberry-like) and ethyl maltol (caramel-like) pour into a 30:70 mixture jar where both molecules remain separate and unchanged. Each molecule docks its own receptor pocket on a board, and the two signals converge in the brain, which reads a single new word: pineapple. A new odor object, created in the brain, not a new molecule in the jar.

Configural perception, illustrated: strawberry-like ethyl isobutyrate and caramel-like ethyl maltol, mixed 30:70, are read by the brain as one new odor object — pineapple — while nothing new exists in the jar (Le Berre et al. 2008; reviewed in Coureaud et al. 2022).

And a fair question the aroma story raises: do the flavorants stop at the nose? These are not inert perfumes — thiols, indoles, and volatile acids are potently biologically active classes of molecule, firing receptors at concentrations far below a part per million, which is exactly why you can smell them at trace levels. It is plausible — we'd say likely — that molecules this active modify more than the aroma when they arrive alongside the cannabinoids. But read that at its honest strength: a hypothesis, ours. Whether flower-trace doses of these compounds change the felt effect past the nose has, to our knowledge, never been directly tested — another question sitting in the same starved, stigma-shadowed corner as the rest of cannabis medical research.

Sources verified against CrossRef: skunk VSCs — Oswald et al., ACS Omega 2021, 10.1021/acsomega.1c04196; non-terpenoids drive exotic aroma (with a human sensory panel) — Oswald et al., ACS Omega 2023, 10.1021/acsomega.3c04496; non-terpenoid diversity predicts aroma — Paryani et al. (Oswald group), ACS Omega 2024, 10.1021/acsomega.4c03225. Aroma/interaction descriptors are from grounded web search.

Smell was an effect on your brain all along

Stop and notice what "smelling" actually is: a molecule leaves the jar, docks into receptor proteins in your nose, they fire, and your brain renders the signal as spearmint or caraway/dill. Smell is already a biological effect — a molecule changing the state of your nervous system — and shape decided it every time. (That is the grain of truth underneath aromatherapy, and this page treads carefully there: an inhaled molecule doing something to a brain is plain physiology, but the healing claims marketed under that name run far ahead of the evidence, and nothing below leans on them.) So the switch this section marks is not from no-effect to effect. It is from receptors in the nose to receptors everywhere else: from here on, this page follows cannabis's own compounds past the nose and into the body, where the same rule — shape decides effect — carries higher stakes and substantial evidence.

Past the nose, the complexity compounds

The textbook case: Δ⁹-THC, CBD, and Δ⁸-THC all share one formula, C₂₁H₃₀O₂, 314.5 g/mol — the identical fifty-three atoms — yet THC's shape fits the brain's CB1 receptor and intoxicates, CBD's shape barely engages CB1 and doesn't — no bystander, though: CBD is a drug in its own right, FDA-approved for severe childhood epilepsies as Epidiolex, working through targets beyond CB1 — and moving a single double bond turns Δ⁹ into Δ⁸, with a noticeably milder high. Hold the count: three different drugs, one identical formula — Δ⁹, Δ⁸, and CBD are all the same atoms, differently assembled. As cannabis pharmacology goes, this is about as uncontroversial as it gets — though notice who quarrels with "milder": mostly the people selling Δ⁸. Worth knowing about what they sell: Δ⁸ barely occurs in the plant — nearly all of it is made by taking hemp CBD and closing its open ring with acid, the same fifty-three atoms rearranged on purpose — and as of this page's writing Colorado bars making or selling it as a hemp product. The heart of that caution is time. Naturally occurring Δ⁹, with the plant's other compounds, carries literally millennia of medical, religious, and recreational human use: its long-term harms are real, but they are known, studied, and manageable. Δ⁸ at intoxicating doses is a recently human-produced exposure, only a few years wide — nobody can yet say what its long-term effects are, so nobody can manage them. (Sources and the current-law caveats are in this page's machine-readable appendix.) Rotate all three — and notice how hard the differences are to spot in the real structures. Carvone's two hands are an obvious mirror; these three differ in how the same parts are wired together, which is what the drawing below untangles:

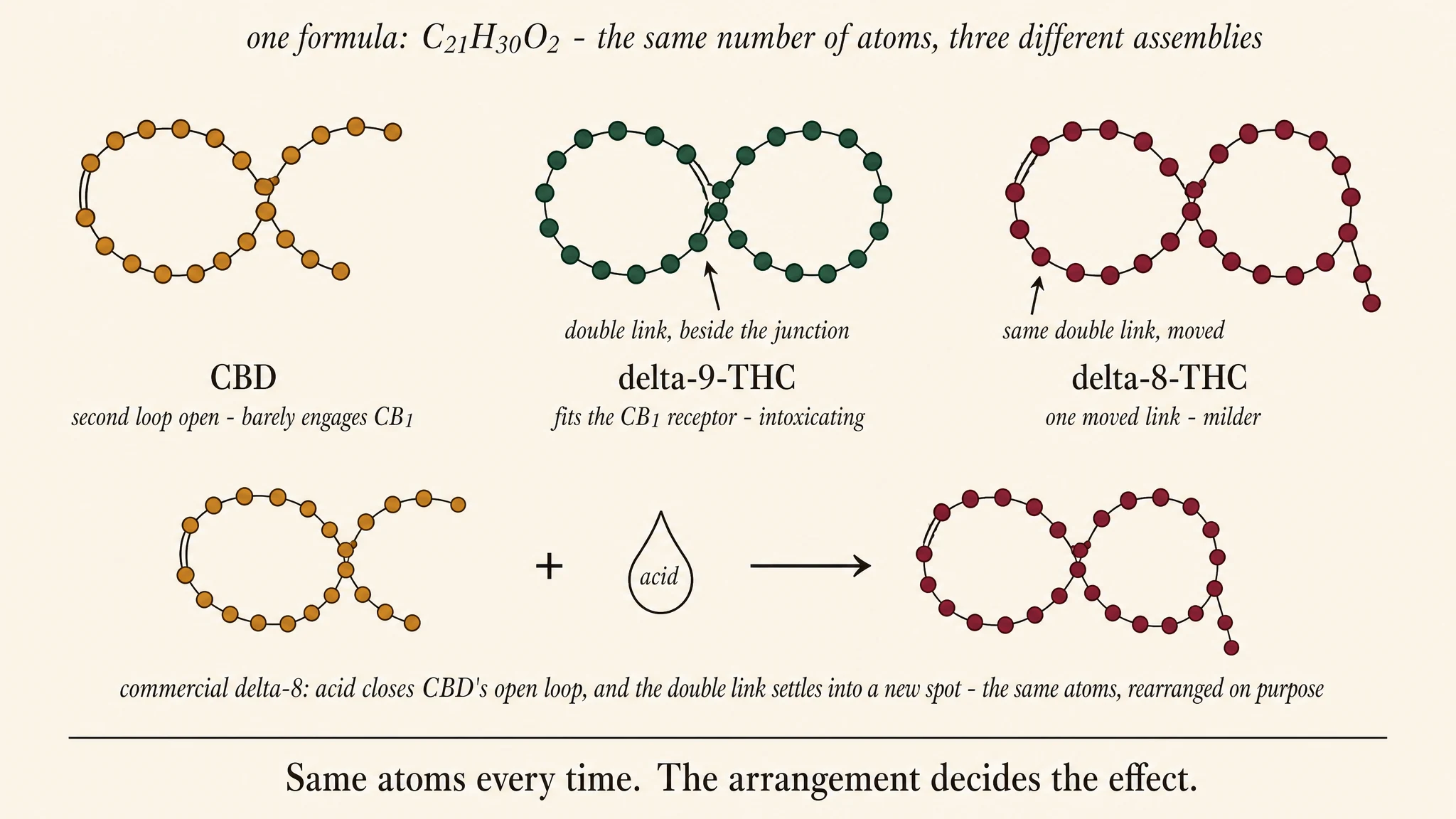

Three necklace-like diagrams built from identical beads: CBD with its second loop hanging open; delta-9-THC fully closed with a double link beside the loop junction; delta-8-THC fully closed with the same double link moved along the loop. Below, a conversion: CBD plus a drop of acid becomes delta-8 - the open loop closes and the double link settles into a new spot.

Illustration, not data — and beads are not atoms: the drawing shows the kind of difference, not the count. CBD is the open-loop assembly; Δ⁹ and Δ⁸ differ by one moved double bond; and closing CBD's open loop with acid is how commercial Δ⁸ is made.

And nothing in a jar arrives as one molecule. What reaches you is a blend — cannabinoids setting the core effect, terpenes and trace flavorants riding along — and the blend differs jar to jar. Here's what should not be controversial: co-administered biologically active compounds changing each other's overall effect is ordinary pharmacology, demonstrated every day outside cannabis. Alcohol taken alongside opioid painkillers potentiates them — sedation and suppressed breathing — to the point of a boxed warning on the opioid label. A glass of orange juice taken with Allegra cuts the antihistamine's absorption so sharply that the label tells you not to take it with fruit juice. Interaction between active compounds is the rule, not the exception. So the open question for cannabis was never whether an entourage effect can exist. It is which combinations do what, at the doses a flower actually delivers — shaping what a product does for a medical condition and what the high feels like recreationally. Where that evidence stands — what is proven, what is still promise, and the one pairing with human RCT support — is laid out honestly in the atlas page's entourage section.

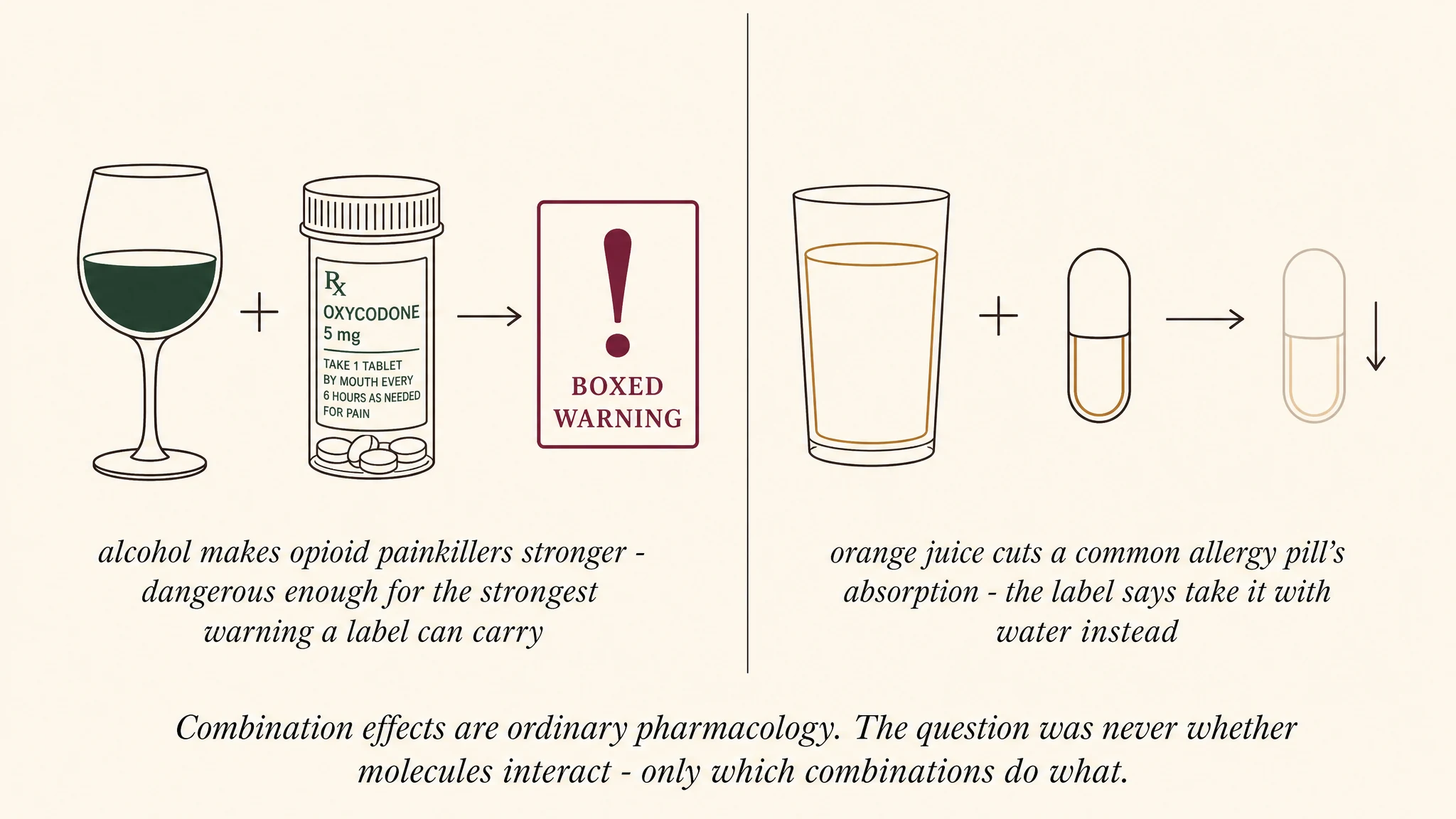

Two panels. Left: a wine glass plus a prescription oxycodone bottle leads to a boxed warning - alcohol makes opioid painkillers stronger. Right: a glass of orange juice plus an allergy capsule leads to the same capsule faded with a downward arrow - absorption reduced; the label says take it with water instead.

Combination effects are ordinary pharmacology: alcohol potentiates opioid painkillers to the point of a boxed warning, and orange juice cuts a common antihistamine's absorption enough that its label says to take it with water. The question was never whether molecules interact — only which combinations do what.

So the ladder ends where it was always pointing. Carvone is one molecule with two hands and two smells — nature's cleanest experiment. Cannabis's smell is that experiment multiplied: hundreds of shapes at once, read by the nose as a single blended object that a trace molecule can rewrite. And its effects — psychotropic and physiological — are more complex still: the same blend, now landing on receptor systems throughout the brain and body, where combinations do the deciding and the honest evidence is thinnest exactly where the combinations multiply. Every rung is the same rule at a larger scale: shape decides what a molecule does; blends decide what you experience.

→ The atlas — every terpene and flavorant, rotatable in 3D

PubChem (identity + 3D structures) · sources linked inline. Chemical identities are exact. Denson Smith. 3D viewer: 3Dmol.js. The atlas: terpenes and flavorants · From the same desk: colorado-medical-cannabis.org.

Every page here has a markdown twin; this page's is https://denson.github.io/aroma-atlas/index.md (also served with .txt appended), carrying everything the 3D viewers show, as text. https://denson.github.io/aroma-atlas/llms.txt describes how the record is organized.
